| SKU | OLR250-A-HP |
| System Capacity (gallons) | 250 |
| Average CFM | 3.03 |
| Motor HP | 1/3 |
| Phase | Single |
| Available Voltages | 115v, 208-230v |
| In-head Safety Relief Valve | 1/4″ 125 psi – Part Number VS3T25125 |
| Check Valve | 3/8″x1/2″ Check Valve – Part Number VCLSS3812 |
| Recommended Accessories | Motor Line Starter |
OLR250-A-HP
SKU: OLR250-A-HP

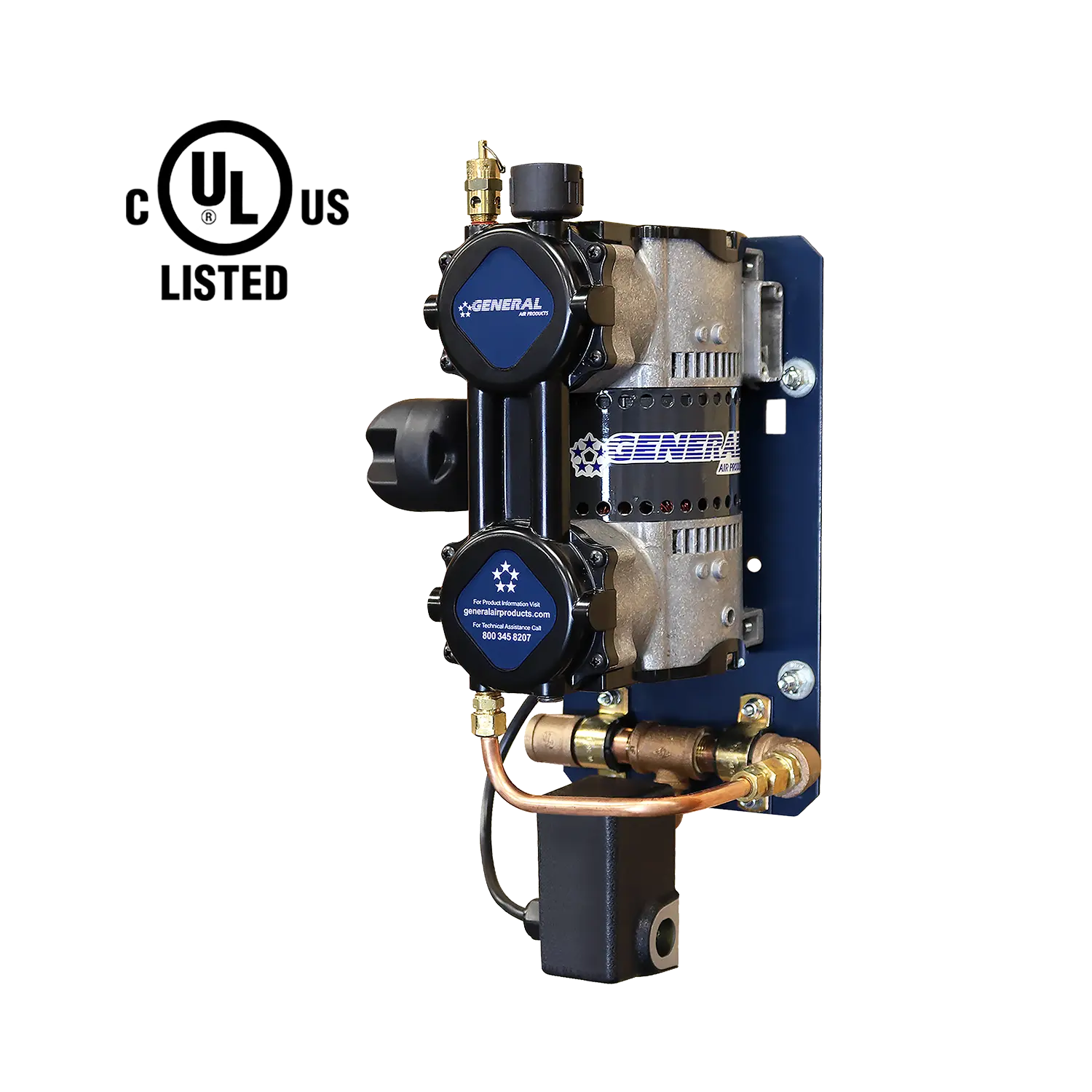

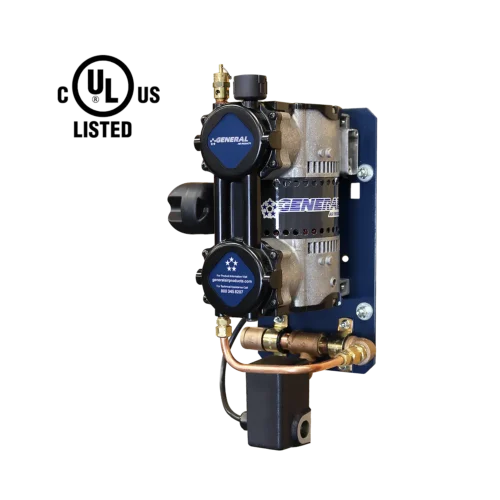

OL Plus Series Oil Less Riser Mounted Air Compressor – High Pressure
UL 1450, Supplement SC listed.
Lead Time: 3 days to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
The OLR250-A-HP has a capacity of 250 gallons at 40 PSI. It outputs an average CFM at 10 PSI of 3.03 produced by a 1/3 horsepower motor. It takes single phase power and is available in 115v,208-230 voltages.This unit comes with a mechanical pressure switch factory pre-set at 80/100 PSI. General Air Products recommends the purchase of Motor Line Starter with this unit.
General Air’s oil less riser mounted air compressors are fully automatic, virtually maintenance free and are designed to be easily installed on the riser, wall or floor.
This compressor is UL 1450, Supplement SC listed.
