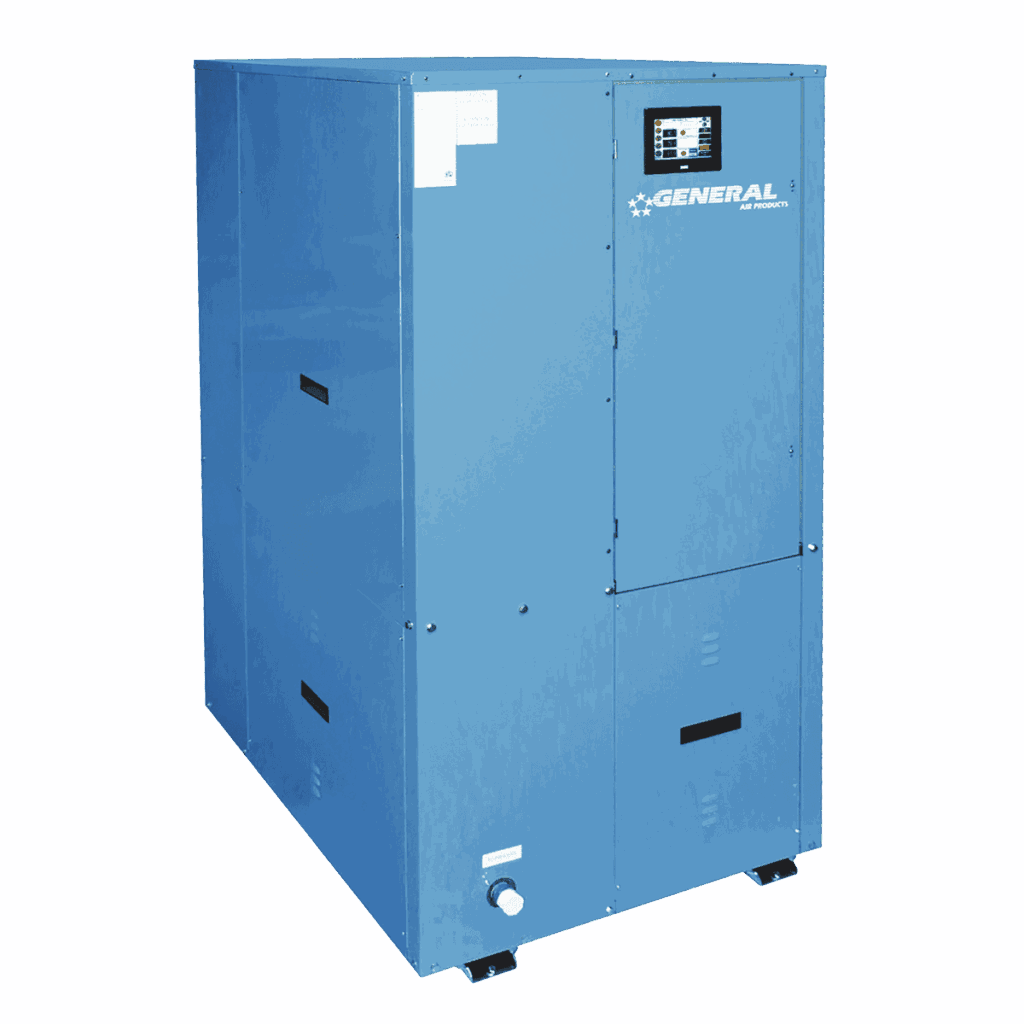

Water Cooled Chillers

Home > Industrial Products > Water Cooled Chillers

General Air Products offers a complete selection of standard and custom water cooled chillers. The water cooling process is typically done with loop chilling from chiller to process and in return offers continuous or intermittent cooling to any fluid-cooled process or sensitive instruments or machines. Water cooled chillers are available in capacities from 1 ton – 60 ton capacities. For specific heat removal requirements please contact our experienced support personnel at 1-888-863-7389.

Water Chiller Maintenance Requirements

  • Keep cooling and condenser fluids clean (7 pH range).
  • Regular electrical systems checks
Model Number
Cooling Capacity (tons)
Dimensions (L x W x H)
Installed Weight (lbs)
PZW1S
1.13
36″ x 34″ x 36″
210
PZW1.5S
1.88
36″ x 34″ x 36″
215
PZW2S
2.12
36″ x 34″ x 36″
215
PZW2.5S
3.16
36″ x 34″ x 36″
245
PZW3S
3.53
36″ x 34″ x 36″
340
PZW4S
4.54
46″ x 34″ x 36″
400
PZW4.5S
4.71
46″ x 34″ x 36″
425
PZW5S
5.53
46″ x 34″ x 36″
450
PZW7S
7.21
46″ x 34″ x 36″
525
PZW7D
7.1
65″ x 34″ x 36″
725
PZW8S
8.17
46″ x 34″ x 36″
585
PZW9S
9.58
46″ x 34″ x 36″
600
PZW9D
9.1
65″ x 34″ x 36″
750
PZW9.5D
9.4
65″ x 34″ x 36″
775
PZW10D
11.1
65″ x 34″ x 36″
800
PZW11S
11.79
46″ x 34″ x 36″
725
PZW13D
14.4
75″ x 34″ x 36″
900
PZW15D
16.3
75″ x 34″ x 36″
965
PZW18D
19.2
75″ x 34″ x 36″
975
PZW22D
23.3
75″ x 34″ x 36″
1000
PZW26D
27.3
85″ x 34″ x 59″
1950
PZW35D
36.8
85″ x 34″ x 59″
2200
PZW43D
44.5
100″ x 34″ x 59″
2350
PZW52D
56.2
100″ x 34″ x 59″
2500
45°F Leaving Fluid Temperature
Model Number
Cooling Capacity (tons)
Dimensions (L x W x H)
Installed Weight (lbs)
PZWT1S
1.01
36″ x 34″ x 65″
450
PZWT1.5S
1.72
36″ x 34″ x 65″
500
PZWT2S
1.94
36″ x 34″ x 65″
550
PZWT2.5S
2.89
36″ x 34″ x 65″
600
PZWT3S
3.24
36″ x 34″ x 65″
650
PZWT4S
4.1
46″ x 34″ x 68.5″
700
PZWT4.5S
4.38
46″ x 34″ x 68.5″
725
PZWT5S
5.04
46″ x 34″ x 68.5″
775
PZWT7S
6.42
46″ x 34″ x 68.5″
850
PZWT7D
6.5
75″ x 34″ x 70″
1000
PZWT8S
7.18
75″ x 34″ x 70″
1000
PZWT9S
8.5
75″ x 34″ x 70″
1050
PZWT9D
8.2
75″ x 34″ x 70″
1100
PZWT9.5D
8.8
75″ x 34″ x 70″
1200
PZWT10D
10.1
75″ x 34″ x 70″
1250
PZWT11S
10.5
75″ x 34″ x 70″
1200
PZWT13D
12.8
75″ x 34″ x 70″
1300
PZWT15D
14.4
85″ x 34″ x 70″
1400
PZWT18D
17
85″ x 34″ x 70″
1450
PZWT22D
21
85″ x 34″ x 70″
1600
45°F Leaving Fluid Temperature

Features:

  • Stainless Steel, Brazed Plate evaporator or Shell & Tube chiller barrel (consult factory for specific information on your model)
  • Microprocessor Controller
  • Industrial duty system process pump
  • Scroll compressor with crankcase heater
  • Condenser(s): coaxial steel copper tube
  • Suction accumulator
  • Water flow switch
  • Hot gas by-pass capacity control
  • Liquid line drier, sight glass, solenoid, TEV
  • 24V control transformer
  • Compressor motor contactor
  • Control circuit fusing
  • “Hard start kit” (Single phase units only)
  • Painted galvanized sheet metal cabinet on models with brazed plate evaporator
  • 1/2” insulation on all water and refrigerant lines
  • Full refrigerant charge from factory
  • Computerized factory run test under load conditions
  • Stainless Steel storage tank with ½” insulation
  • Fused Stainless Steel re-circulation pump for tank operation with ball valve and cleanable strainer
  • Tank pressure relief valve, vent and drain connections

Applications:

  • Air compressor cooling
  • Presses
  • Injection Molding
  • Extrusion
  • Blow Molding
  • Laser Cutting
  • Welding
  • Optics
  • Medical
  • Chemical & Pharmaceutical
  • Breweries
  • Wineries
  • Food Processing
  • Jacketed Vessels

General Air Products Serves Many Air Cooled & Water Cooled Chiller Applications

Our expert engineers can work with you to find the best solution for your most complex industrial challenges.
