| Model Number | SG-1500D |
| 30 Min Fill Capacity (gal @ 16 PSI) | Bypass Mode: 1525, Drying Mode: 750 |
| CFM Output | Bypass Mode: 6.8, Drying Mode: 3.8 |
| Motor HP | 1 |
| Voltage (Volts) | 115, 208-230 |
| Amperage (Amps) | 15 (115V), 7.5 (208-230V) |
| Recommended Wire Size (Gauge) | Check the CutSheet for the correct information |
| Unit Weight (lbs) | 146 |
SG-1500D
SKU: SG-1500D
Fully enclosed, all-in-one supervisory air supply package engineered to meet the demands of all types of dry standpipe systems.
Lead Time: 6 weeks to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:

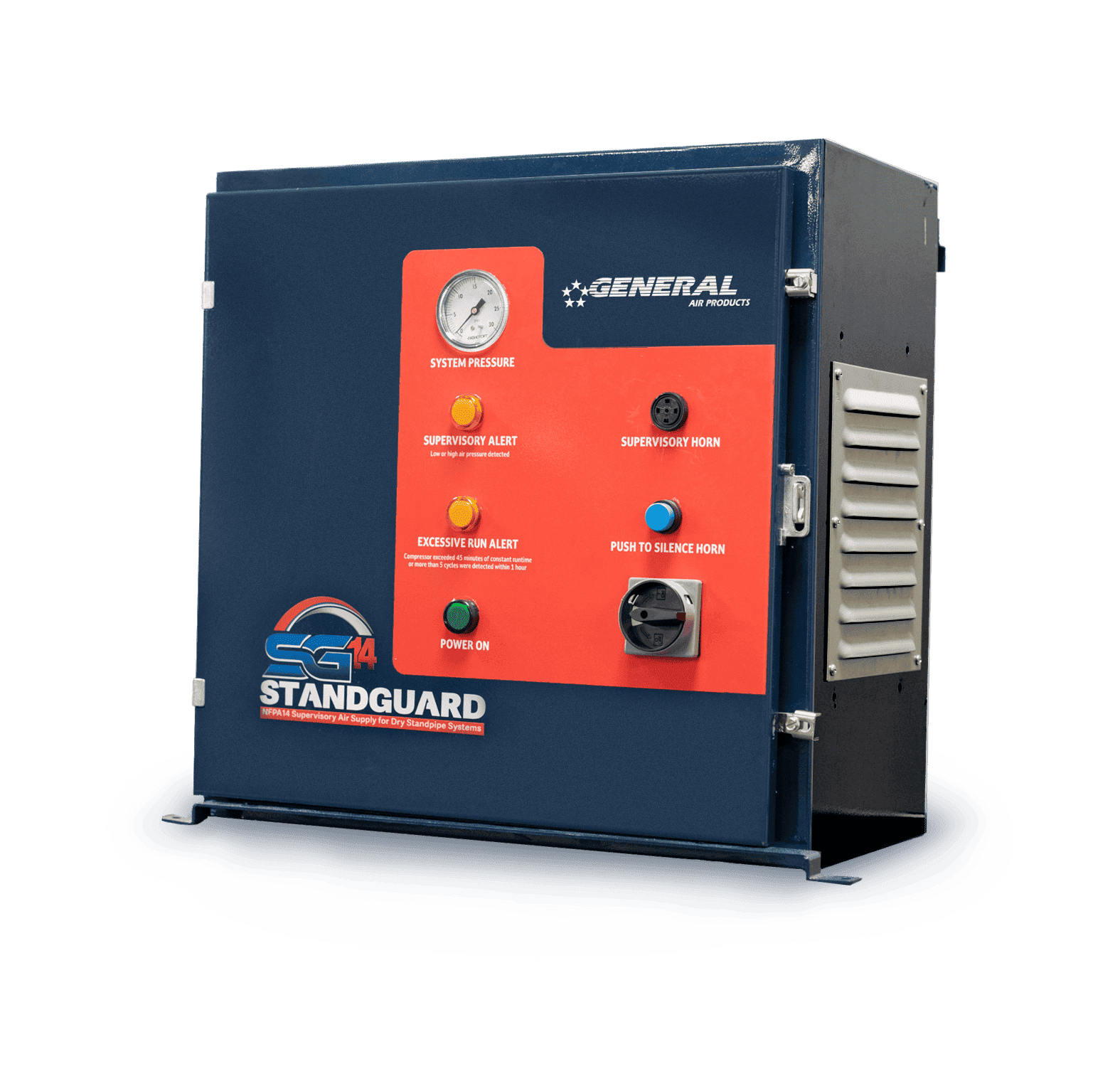

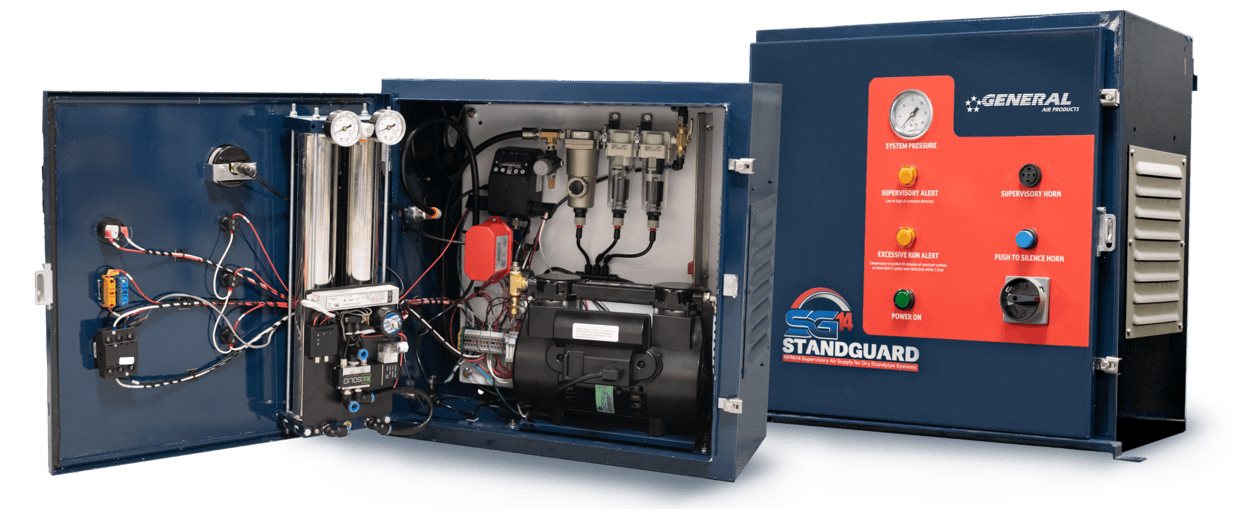

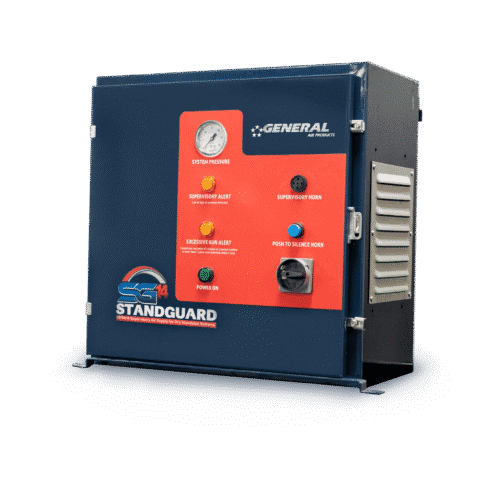

StandGuard® is the complete solution for maintaining reliability and compliance in manual dry standpipe systems.
With built-in low & high air pressure alerts, excessive run alerts for leak detection, and optional dryer & heated cabinet for unconditioned or cold environments, it’s one package to meet the new NFPA 14 Supervisory Air Requirements.
