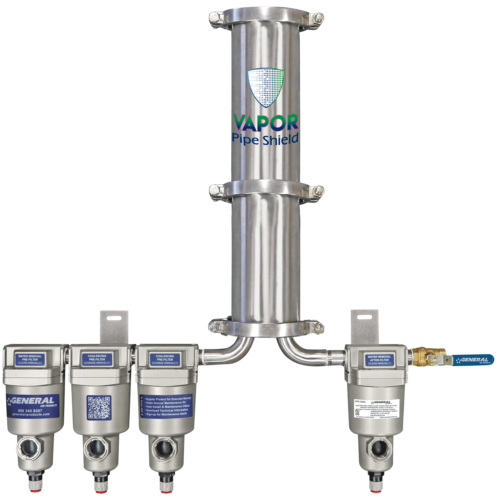

Vapor Pipe Shield


SKU: VPS-1000A

The VPS-1000A is a UL Listed Vapor-Phase Corrosion Inhibitor (VpCI®) Delivery System for Dry Pipe & Pre-Action Fire Sprinkler Systems. The VPS-1000A has a corrosion prevention Fill Capacity of up to 1,000 gallons (the Largest Riser) and a Total Capacity of up to 4,000 gallons for up to 4 individual systems.

Request A Quote
Fill Capacity ( Largest Riser) 1000 gallons
Total Capacity (Max 4 Systems) 4000 gallons
Inlet / Outlet Connections 1/2″ FNPT
Max Pressure 150
Dimensions 26L x 6.5W x 28.25H
Unit Weight 26

Vapor Pipe Shield is a UL Listed Vapor phase Corrosion Inhibitor delivery system that is fully mechanical with no electrical connections and simply piped directly in-line between the air compressor and the dry pipe valve. Using a technology backed by over forty years of established science, Vapor Pipe Shield is easy to install and maintain, and makes corrosion mitigation in any dry or pre-action fire sprinkler system simple, efficient, and highly cost-effective.

General Arrangement Engineer Submittal Package Quick Start Guide Installation Video User Manual Cut Sheet
