Vapor Pipe Shield

VPS-1500A

SKU: VPS-1500A

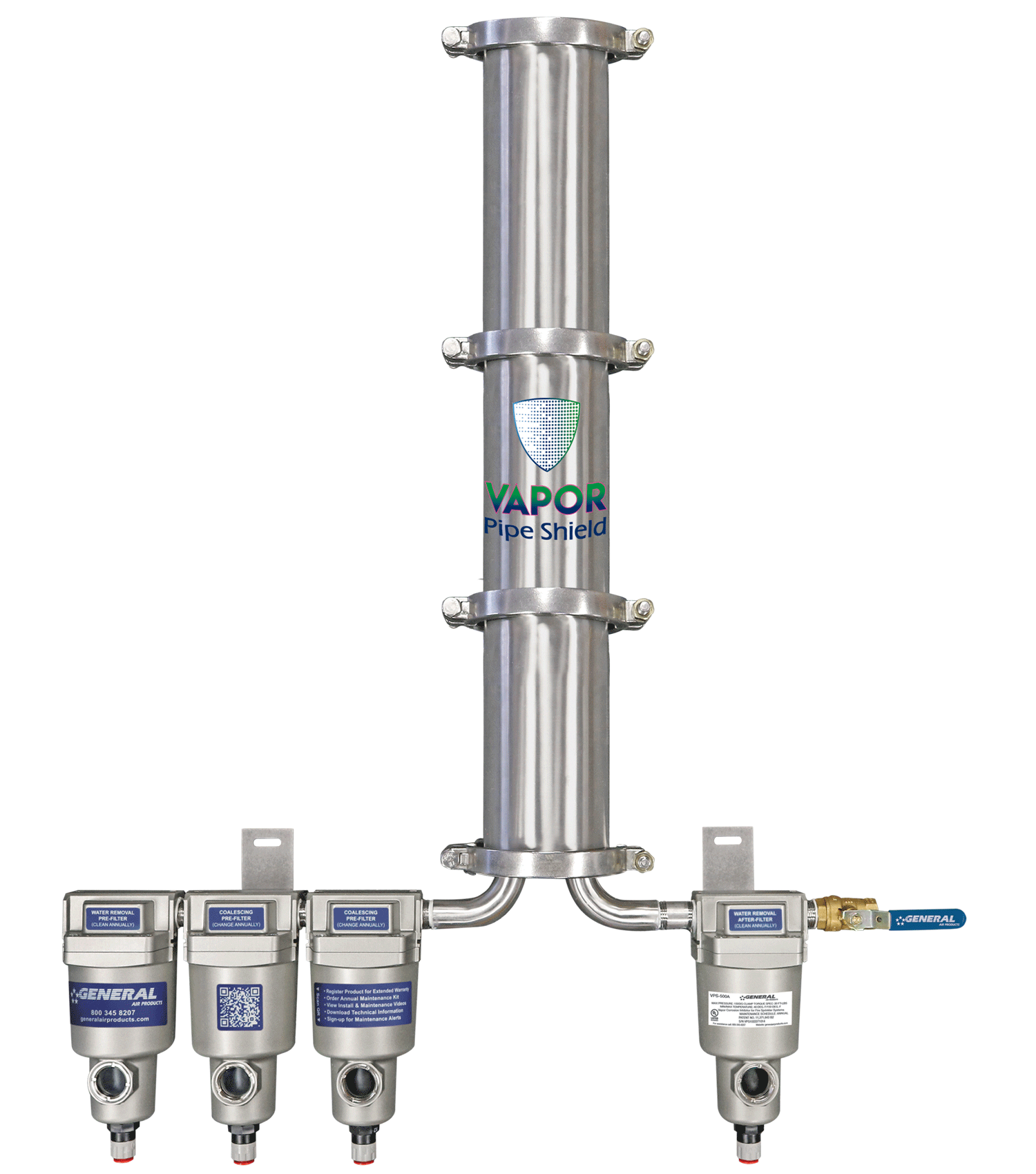

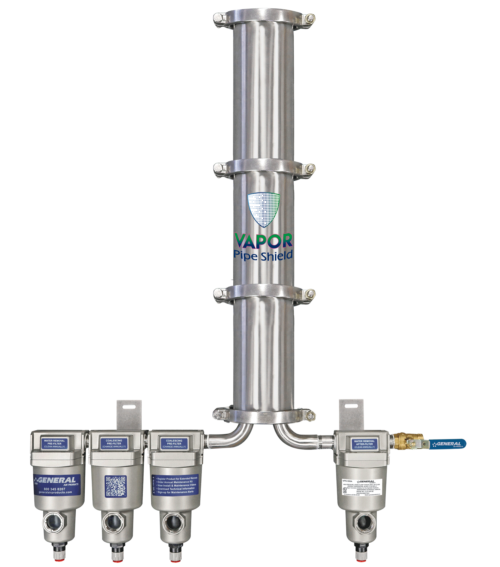

The VPS-1500A is a UL Listed Vapor-Phase Corrosion Inhibitor (VpCI®) Delivery System for Dry Pipe & Pre-Action Fire Sprinkler Systems. The VPS-1500A has a corrosion prevention Fill Capacity of up to 1,500 gallons (the Largest Riser) and a Total Capacity of up to 6,000 gallons for up to 4 individual systems.

Lead Time: 1 to 3 days to ship
For large orders & exact lead times, please consult factory.

Find this unit in stock with one of our Distributors near you:

Request A Quote
SKU VPS-1500A
Fill Capacity (Largest Riser) 1500 gallons
Total Capacity (Max 4 Systems) 6000 gallons
Inlet / Outlet Connections 1/2″ FNPT
Max Pressure 150
Dimensions 26L x 6.5W x 36.25H
Unit Weight 32

Vapor Pipe Shield is a UL Listed Vapor phase Corrosion Inhibitor delivery system that is fully mechanical with no electrical connections and simply piped directly in-line between the air compressor and the dry pipe valve. Using a technology backed by over forty years of established science, Vapor Pipe Shield is easy to install and maintain, and makes corrosion mitigation in any dry or pre-action fire sprinkler system simple, efficient, and highly cost-effective.
