| SKU | QLRV500-A |
| System Capacity @ 40 PSI | 500 gallons |
| System Capacity @ 20 PSI | 860 gallons |
| Average CFM | 5.4 |
| Motor HP | 1 |
| Phase | Single |
| Available Voltages | 115V |
| In-head Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| Check Valve | 3/8″x1/2″ Check Valve – Part Number VCLSS3812 |
| Recommended Accessories | Motor Line Starter |

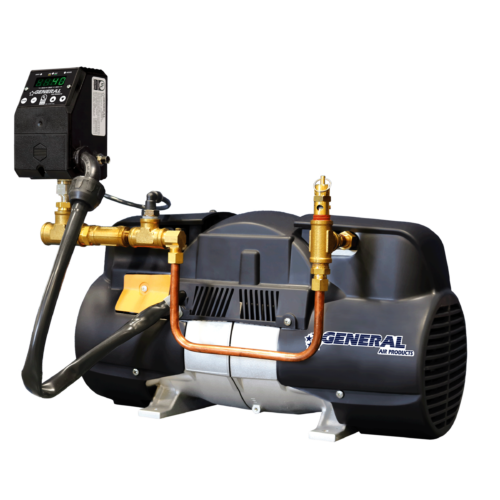

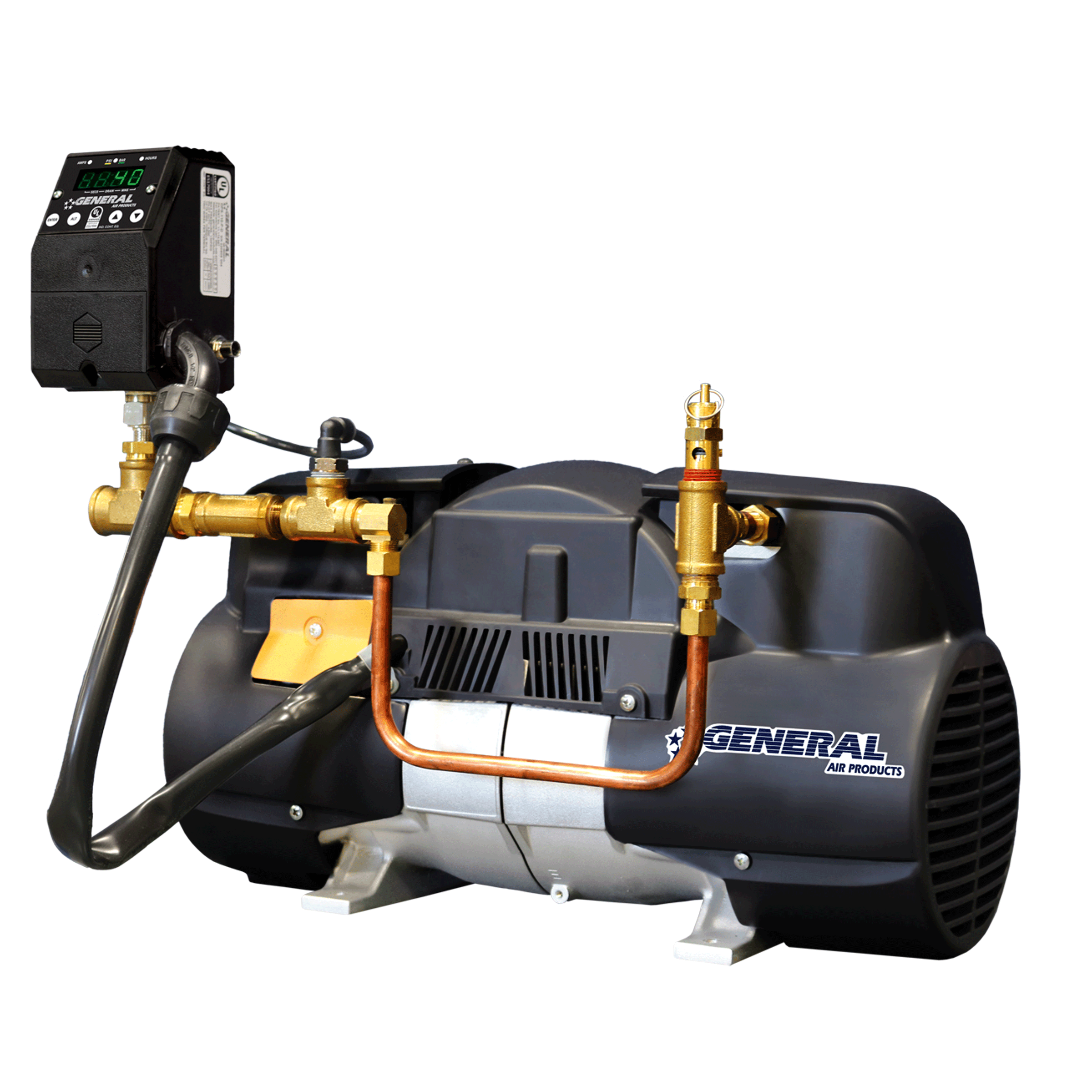

QLRV500100AC – Quiet Series Advance Compressor
SKU: QLRV500-A
QUIET Oil-Less Riser Mount Air Compressors With Digital Pressure Switch. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
Lead Time: 3 days to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
The Q Advance Series Riser Mount Air Compressors Feature an all-new, UL 508 Listed, General Air Products Digital Pressure Switch. Designed to run at an average of 58 dBA, this is a 20 dBA drop from our standard OL Series. The Q Advance Series Air Compressors are specifically designed to fill dry pipe and pre-action fire sprinkler systems to supervisory pressure within 30 minutes per NFPA 13.
