The Best Air Supply For Cold Storage Sprinkler Systems & Applications Where Moisture Removal Is Essential. Now Better Than Ever.
For nearly 30 years, the Dry Air Pac® has set the standard in the sprinkler industry for cold storage and other moisture-sensitive installations. Now, General Air Products has taken it further.

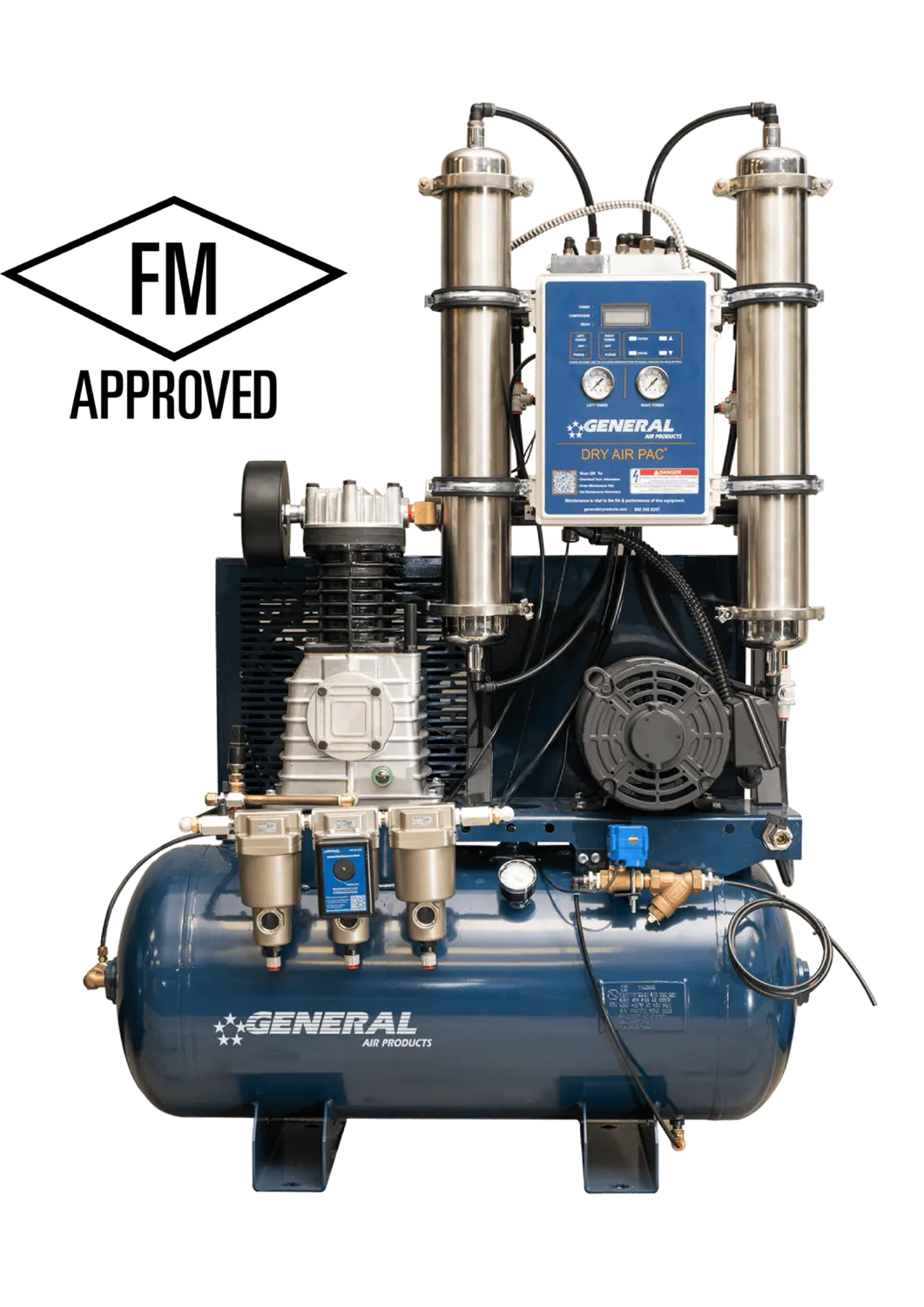

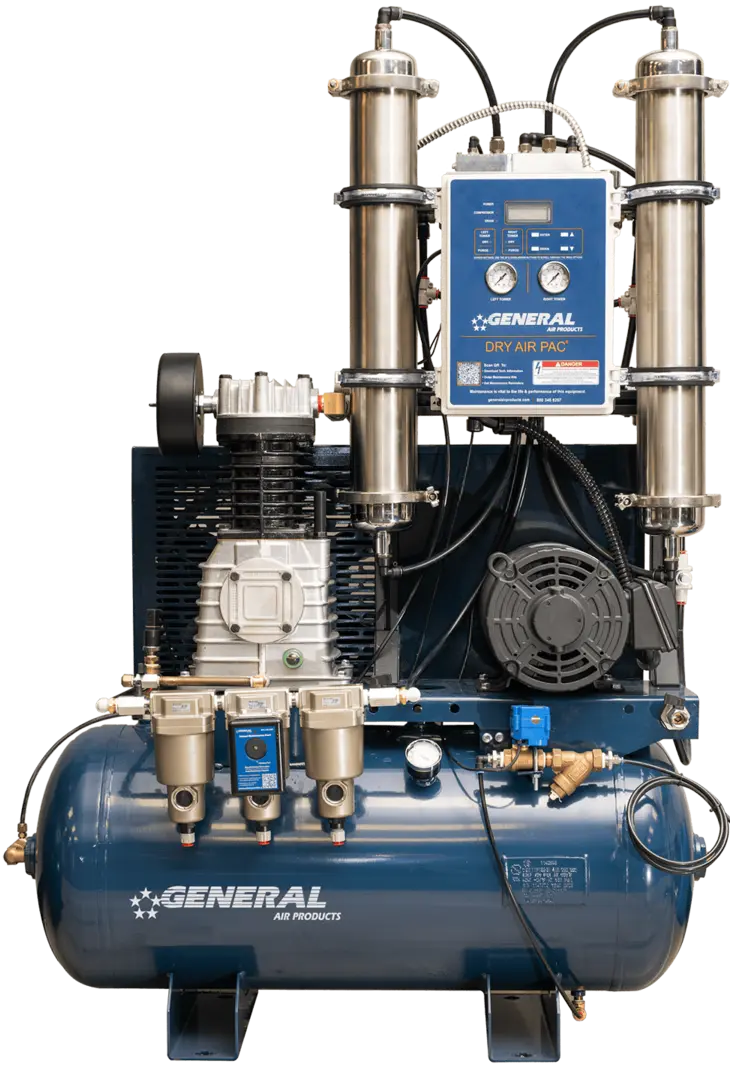

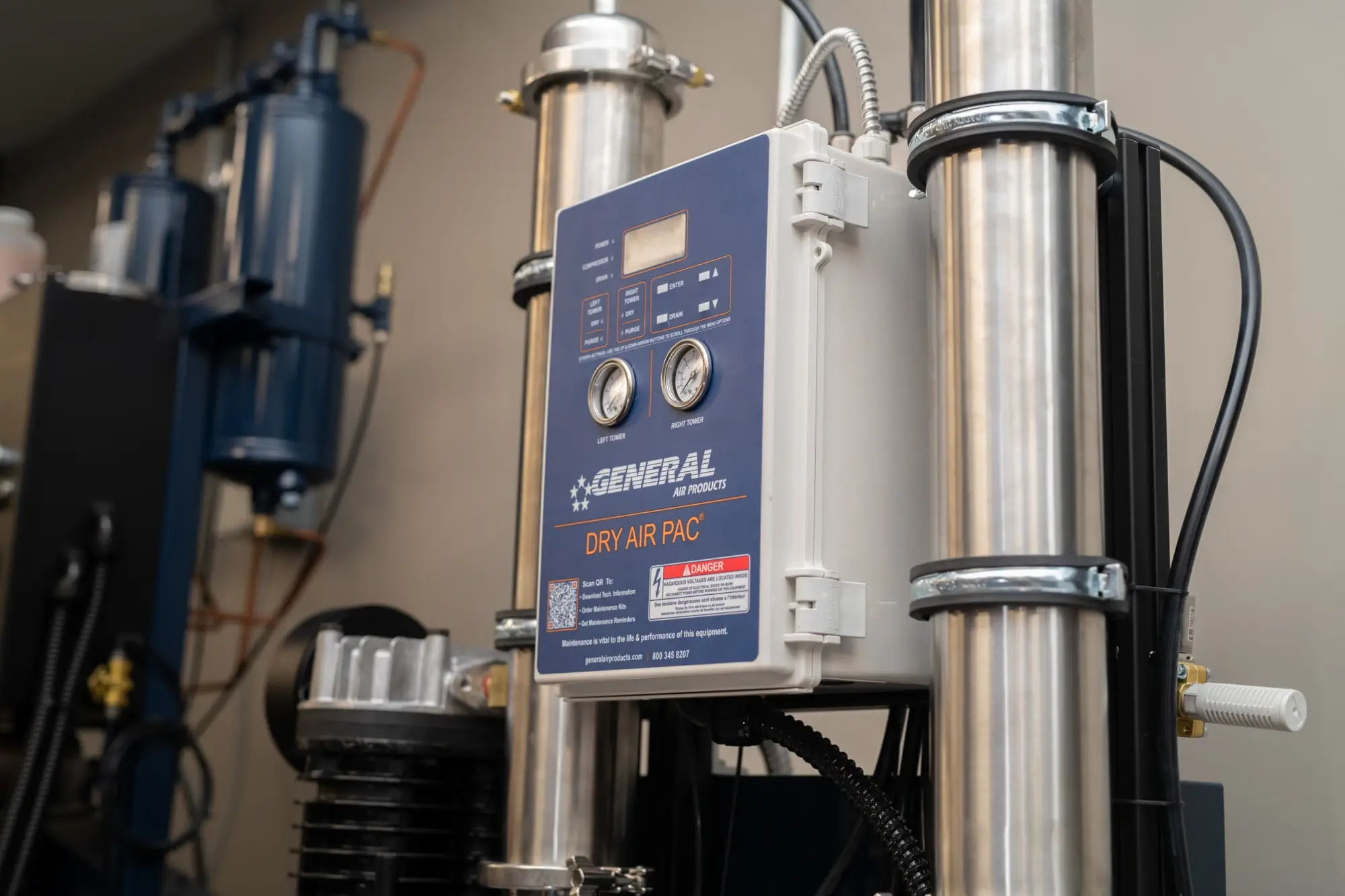

Introducing the most advanced Dry Air Pac® yet—featuring upgraded desiccant towers, a digital control panel, easy-access push-connect fittings, and more.
The new Advance Series delivers lasting durability, reliability, and performance—an ideal choice for fire sprinkler systems in environments where moisture and temperature shifts can lead to ice plugs.
Lead Time: 5 weeks to ship
For large orders & exact lead times, please consult factory.
Note: The previous Dry Air Pac® models have been replaced by the new models below. If you need technical information on the obsolete models click here.
ANNUAL MAINTENANCE REMINDERS
Do you know when your Dry Air Pac® is due for maintenance?
Model Number | System Capacity (gal.) | Order Maintenance Kit | Engineering Submittal Package | Wiring Guide | Cut Sheet |
|---|---|---|---|---|---|
500 |  |  |  | | |
500 | | | | | |
2000 | | | | |
Click on the model numbers to find additional product information and to order maintenance kits
Additional Downloads
Advantages of Dry Air

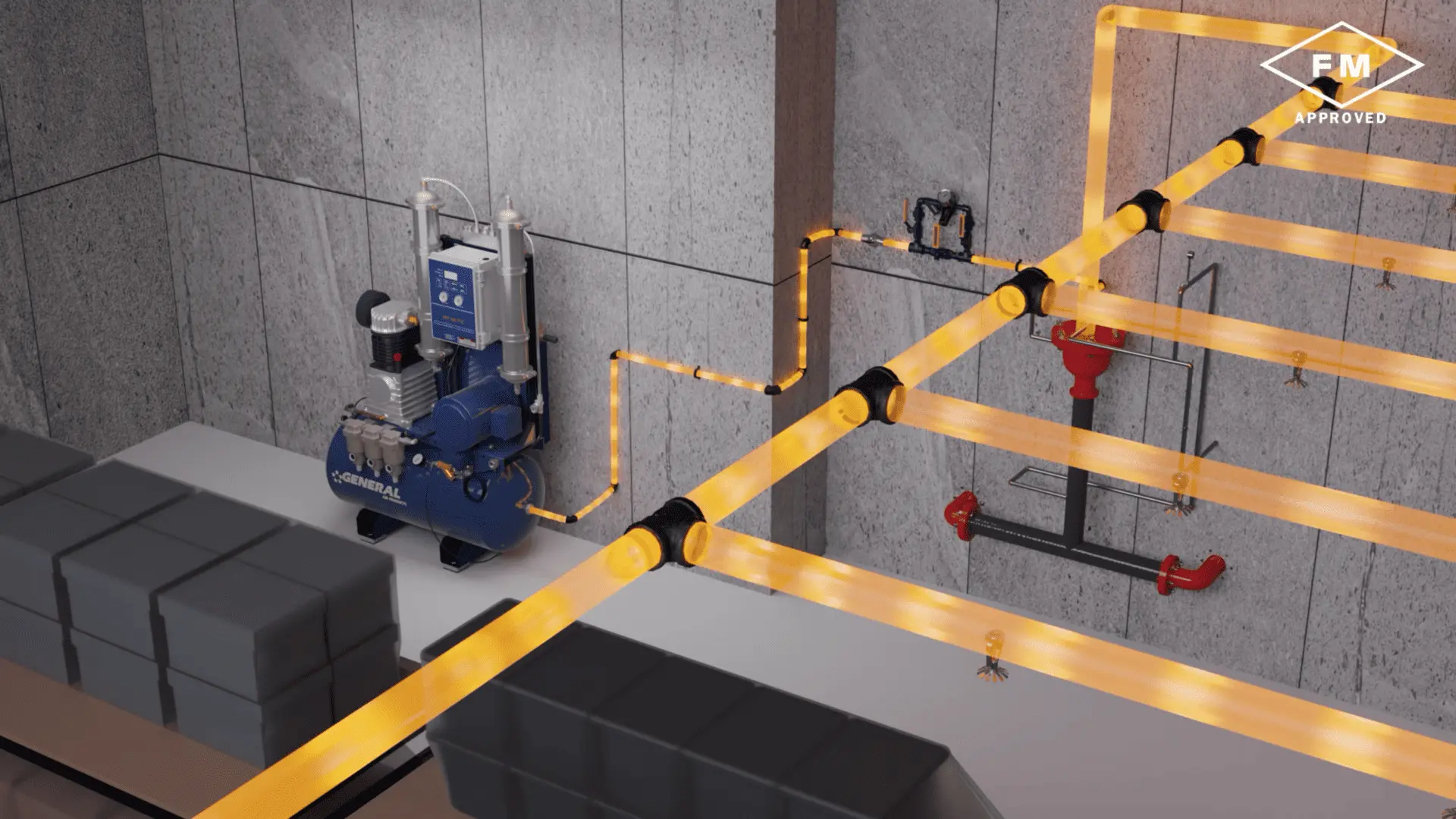

The Dry Air Pac® has been the sprinkler industry’s benchmark for nearly 30 years in cold storage, freezer room facilities and other installations where moisture removal is essential. Dry air has long been utilized to prevent ice plugs from forming and in the same process reducing pipe corrosion significantly.
By bringing the pressure dew point of the air inside of the sprinkler piping system down to a -40 degree F dew point (note that this is a moisture measurement, not the temperature inside the pipe) moisture is removed from the compressed air supplying the sprinkler system and the process of oxidation is being controlled. In short, this means no ice plugs and significant corrosion protection.
What’s Included with a Dry Air Pac® Advance Series?
All components are pre-piped, pre-tested, and pre-wired for ease of mechanical and electrical installation on site. Each unit comes sized to fill a dry or pre-action sprinkler system to 40 psi in 30 minutes as per NFPA code, all pre-filters are included and pressure switches / pressure regulators preset to industry standards. Every Dry Air Pac® Advance Series also includes a UL Listed, FM Approved Air Maintenance Device, compressor oil and vibration isolators.
Did You Know? The FM Approval on the Dry Air Pac® eliminates the requirement to connect the air intake to the freezer room. NFPA 13 exempts any approved packages from this costly requirement.
Click here to learn more about the Dry Air Pac® maintenance schedule and maintenance kits.
Fire Sprinkler System Training
The National Fire Sprinkler System Training Center at General Air Products is located in Exton, Pennsylvania. This NICET recognized training facility is state-of-the-art and features fire sprinkler products from several manufacturers in the fire protection industry allowing attendees to get hands-on with a variety of live equipment. We also offer virtual training and webinars online.
