| SKU | LT1400-A |
| System Capacity (gallons) | 1400 |
| Motor HP | 3 |
| Phase | Single |
| Available Voltages | 208v=A2S, 230v=A3S |
| Overload Protection | Includes a pre-wired motor starter for 208v and 230v. Specify voltage at time of purchase. |
| In-tank Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| In-tank Check Valve | 1/2″ x 3/4″ Part Number VC33T5075 |
| Recommended Accessories | AMD-1 Air Maintenance Device Motor Line Starter |
| Tank Volume (gallons) | 30 |
LT1400-A
SKU: LT1400-A

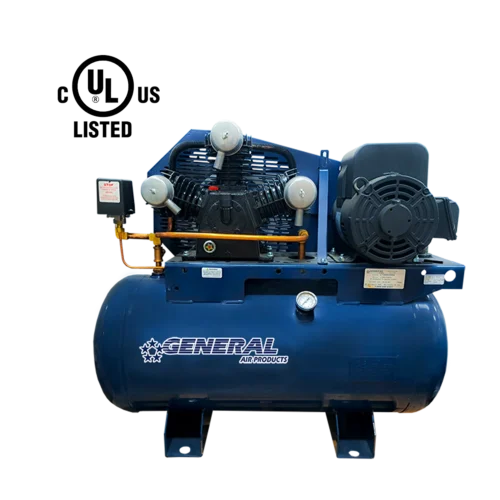

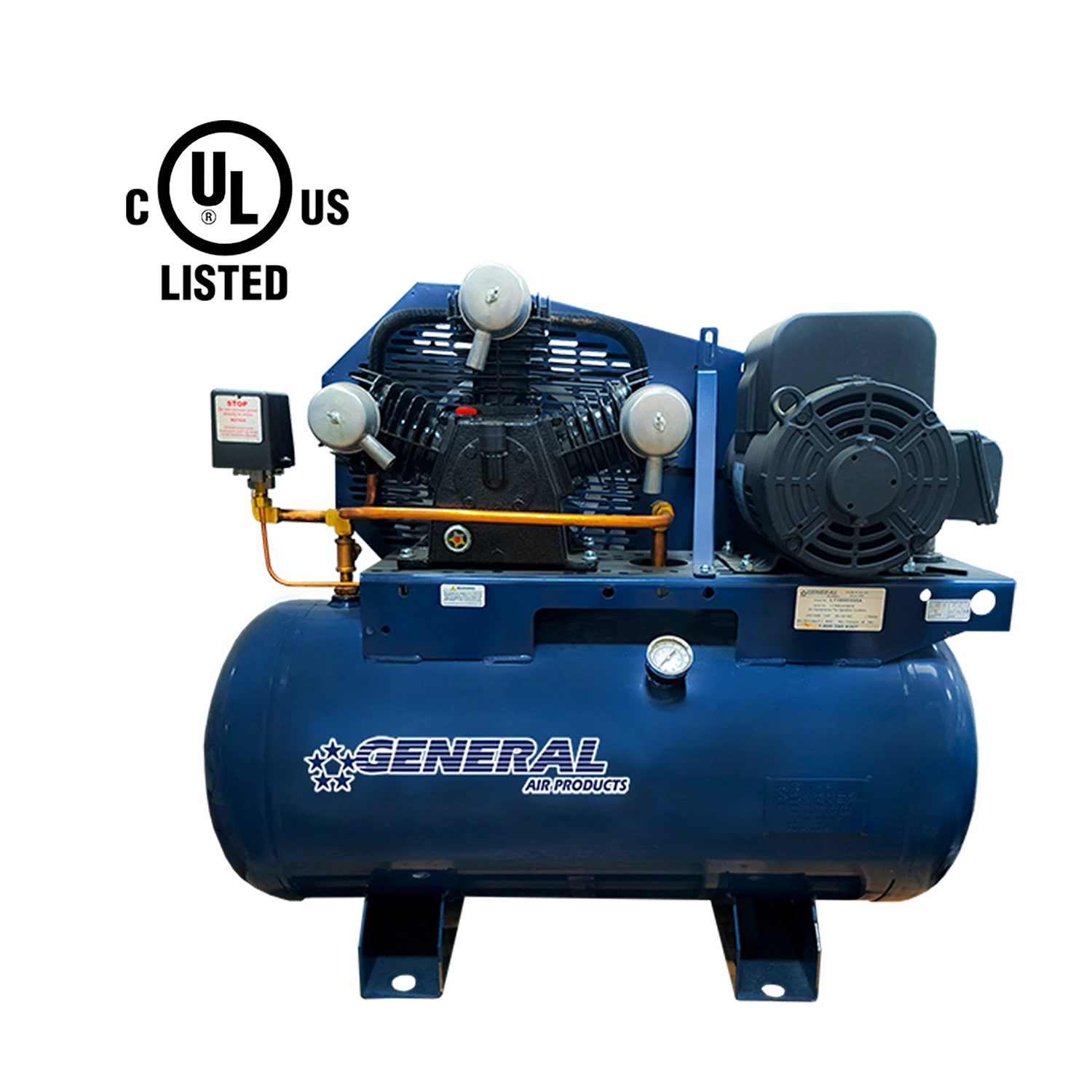

Single Phase, Oil Lubricated Tank Mounted Air Compressors With a Mechanical Pressure Switch and pre-wired overload protection. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
Lead Time: 2 weeks to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
The LT1400-A has a capacity of 1400 gallons at 40 PSI. It outputs an average CFM at 10 PSI of 16.97 produced by a 3 horsepower motor. It takes single phase power and is available in 208v (A2S) and 230v (A3S) voltages.This unit comes with a mechanical pressure switch factory pre-set at 80/100 PSI. All tank mounted compressors require an Air Maintenance Device (AMD-1) to regulate system pressure, per NFPA Standard. General Air Products recommends the purchase of AMD-1 Air Maintenance Device with this unit.
This compressor is UL 1450, Supplement SC listed.
