| SKU | LT200-A |
| System Capacity (gallons) | 200 |
| Motor HP | 3/4 |
| Phase | Single |
| Available Voltages | 115v, 208-230v |
| Overload Protection | Built-in for 115v, 208-230v |
| In-tank Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| In-tank Check Valve | Before 2004: 3/8″ x 1/2″ Part Number VC35038TA After 2004: 1/2″ x 1/2″ Part Number VC3T5050 |
| Recommended Accessories | AMD-1 Air Maintenance Device Motor Line Starter |
| Tank Volume (gallons) | 10 |
LT200-A
SKU: LT200-A

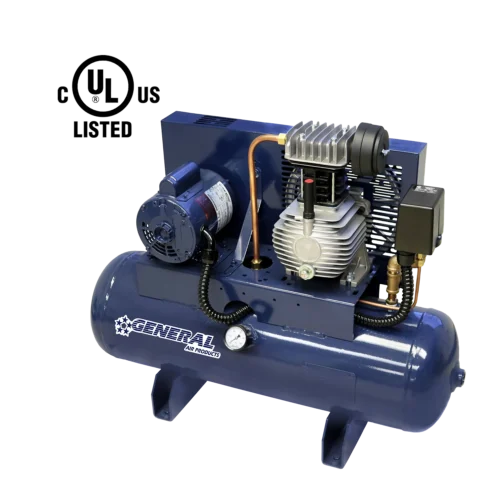

Single Phase Oil Lubricated Tank Mounted Air Compressors With a Mechanical Pressure Switch and include built-in overload protection. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
Lead Time: 2 weeks to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
The LT200-A has a capacity of 200 gallons at 40 PSI. It outputs an average CFM at 10 PSI of 2.4 produced by a 3/4 horsepower motor. It takes single phase power and is available in 115v,208-230v voltages.This unit comes with a mechanical pressure switch factory pre-set at 80/100 PSI. All tank mounted compressors require an Air Maintenance Device (AMD-1) to regulate system pressure, per NFPA Standard. General Air Products recommends the purchase of AMD-1 Air Maintenance Device and Motor Line Starter with this unit.
This compressor is UL 1450, Supplement SC listed.
