| SKU | LT2200-A |
| System Capacity (gallons) | 2200 |
| Motor HP | 5 |
| Phase | Single |
| Available Voltages | 208v=A2S, 230v=A3S |
| Overload Protection | Includes a pre-wired motor starter for 208v and 230v. Specify voltage at time of purchase. |
| In-tank Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| In-tank Check Valve | 3/4″ x 3/4″ Part Number VC3T7575 |
| Recommended Accessories | AMD-1 Air Maintenance Device Motor Line Starter |
| Tank Volume (gallons) | 30 |

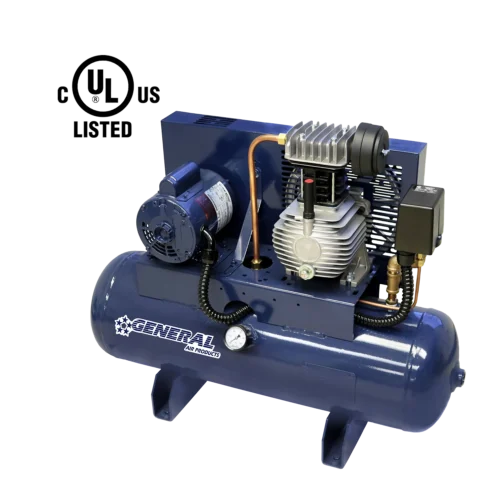

Lubricated Tank Mount Compressors
LT2200-A
SKU: LT2200-A
Single Phase, Oil Lubricated Tank Mounted Air Compressors With a Mechanical Pressure Switch and pre-wired overload protection. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
Lead Time: 2 weeks to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
Our LT Plus Series, UL-Listed Models, Oil-Lubricated Tank-Mounted Fire Protection Air Compressors are mounted on ASME air receivers. They feature an 80/100 PSI Mechanical Pressure Switch and include a Pre-wired Motor Starter for Overload Protection and Easy installation. Request a quote today!
