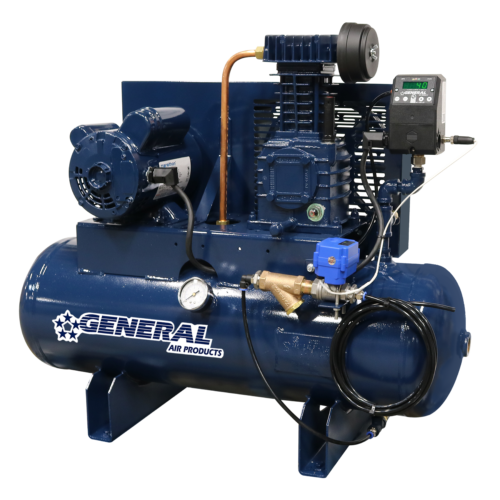

Three Phase Oil Lubricated Tank Mounted Air Compressors With a UL Listed Digital Pressure Switch & Auto Tank Drain. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
Lead Time: 2 weeks to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
| SKU | LTV390-A |
| System Capacity @ 40 PSI | 390 gallons |
| Average CFM |
4.18 |
| Motor HP | 1 |
| Phase | Three |
| Available Voltages | 208v,230v,460v |
| In-tank Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| In-tank Check Valve | 1/2″ x 1/2″ Part Number VC3T5050 |
| Recommended Accessories | AMD-1 Air Maintenance Device Motor Line Starter |
| Tank Volume (gallons) | 10 |
The LTV390-B has a capacity of 390 gallons at 40 PSI. It outputs an average CFM at 10 PSI of 4.18 produced by a 1 horsepower motor. It takes three phase power and is available in 208v,230v,460v voltages.This unit comes with a digital pressure switch factory pre-set at 80/100 PSI. All tank mounted compressors require an Air Maintenance Device (AMD-1) to regulate system pressure, per NFPA Standard. General Air Products recommends the purchase of AMD-1 Air Maintenance Device and Motor Line Starter with this unit.
Featuring an all-new, UL 508 Listed, General Air Products Digital Pressure Switch and an Automatic Tank Drain Valve. The ONLY UL-Listed Digital Pressure Switch in the Fire Protection industry designed and built by the compressor manufacturer themselves. Displays Pressure Readings, Run Hours, Amps, Cycles and is extremely easy to adjust pressure settings in the field. Request a quote today!
