| SKU | OLT1095-A |
| System Capacity (gallons) | 1100 |
| Average CFM | 13.34 |
| Motor HP | 2 |
| Phase | Single |
| Available Voltages | 208-230v |
| In-head Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| In-tank Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| In-tank Check Valve | 3/8″ x 3/8″ Check Valve – Part Number VC303838 |
| Recommended Accessories | AMD-1 Air Maintenance Device Motor Line Starter |
OLT1095-A
SKU: OLT1095-A

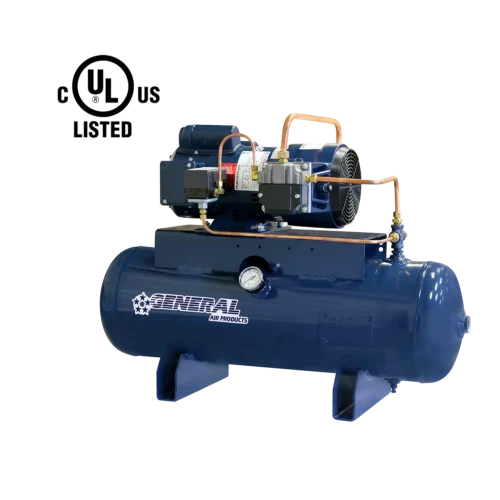

Single Phase Oil Less Tank Mounted Air Compressors With a UL Listed 80/100 PSI Mechanical Pressure Switch. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
Lead Time: 5 weeks to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
The OLT1095-A has a capacity of 1100 gallons at 40 PSI. It outputs an average CFM at 10 PSI of 13.24 produced by a 2 horsepower motor. It takes single phase power and is available in 208-230v voltages.This unit comes with a mechanical pressure switch factory pre-set at 80/100 PSI. All tank mounted compressors require an Air Maintenance Device (AMD-1) to regulate system pressure, per NFPA Standard. General Air Products recommends the purchase of AMD-1 Air Maintenance Device Motor Line Starter with this unit.
This compressor is UL 1450, Supplement SC listed.
