OLT250-A-50

OLT250-A-50

SKU: OLT250-A-50

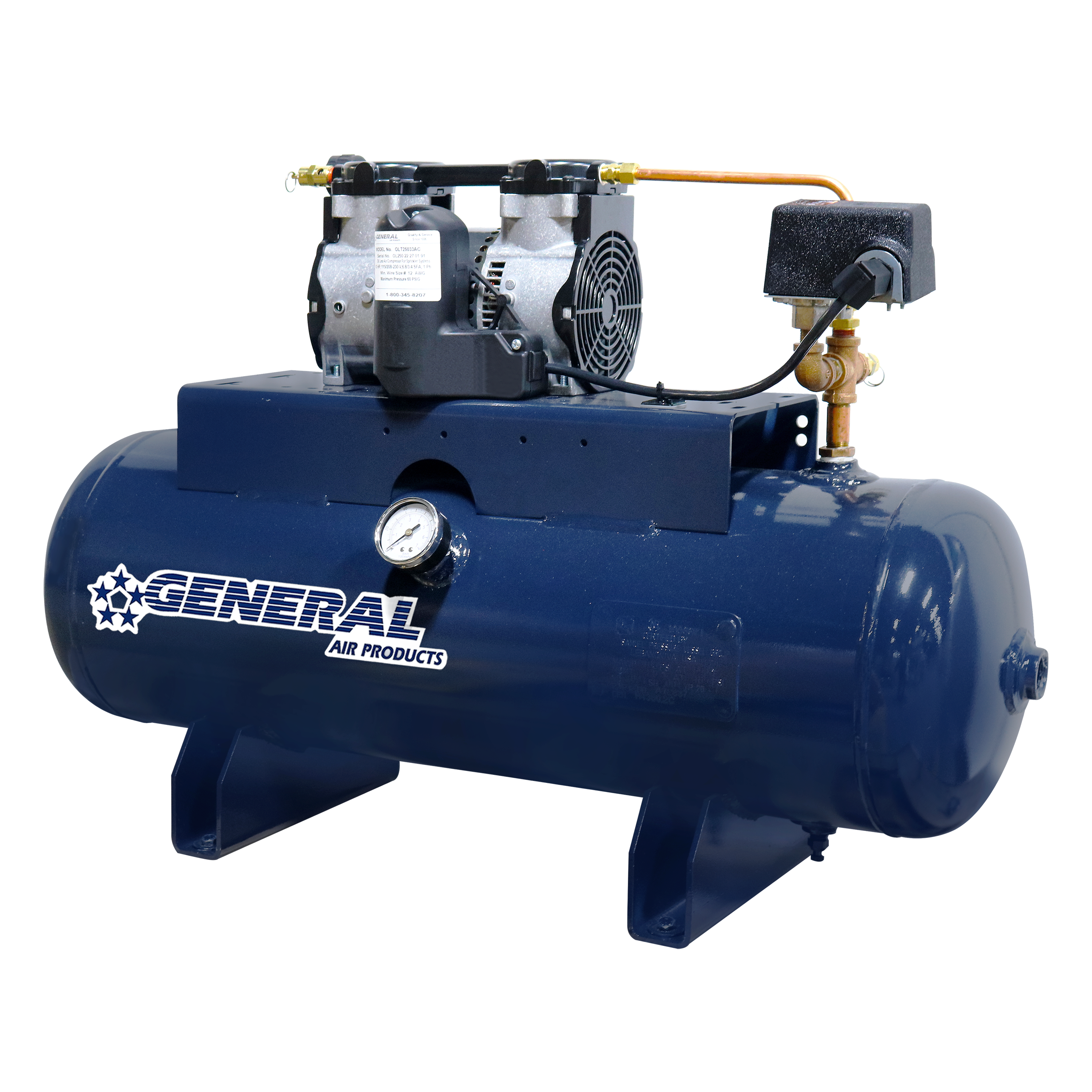

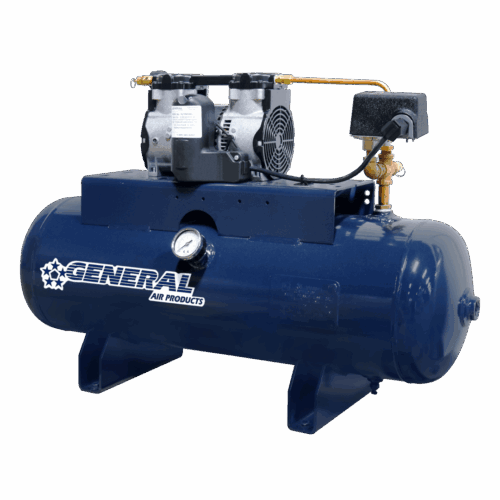

Single Phase, 50Hz Oil Less Tank Mounted Air Compressors With a UL Listed 80/100 PSI Mechanical Pressure Switch. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.

Lead Time: 1 week to ship
For large orders & exact lead times, please consult factory.

Find this unit in stock with one of our Distributors near you:

Request A Quote
Find a Distributor
SKU OLT250-A-50
System Capacity (gallons) 250
Average CFM 3.03
Motor HP 1/3
Phase Single
Available Voltages 220kw-240kw
In-head Safety Relief Valve 1/4″ 125 psi – Part Number VS3T25125
In-tank Safety Relief Valve 3/8″ 125 psi – Part Number VS3T33125
In-tank Check Valve 3/8″ x 3/8″ Check Valve – Part Number VC303838
Recommended Accessories AMD-1 Air Maintenance Device
Motor Line Starter

The OLT250-A-50 has a capacity of System capacity 945 L at 2.75 BAR. It outputs an average LPM @ .7 BAR of 71L produced by a 0.25 kW motor. It takes single phase power and is available in 220-240v voltages.This unit comes with a mechanical pressure switch factory pre-set at 80/100 PSI. All tank mounted compressors require an Air Maintenance Device (AMD-1) to regulate system pressure, per NFPA Standard. General Air Products recommends the purchase of a AMD-1 Air Maintenance and a Device Motor Line Starter with this unit.


PDF icon
Download the cutsheet here
