| SKU | LTV1400-A |
| System Capacity (gallons) | 1400 |
| Motor HP | 3 |
| Phase | Single |
| Available Voltages | 208v=A2S, 230v=A3S |
| Overload Protection | Includes a pre-wired motor starter for 208v and 230v. Specify voltage at time of purchase. |
| In-tank Safety Relief Valve | 3/8″ @125psi – Part number VS3T33125 |
| In-tank Check Valve | 1/2″ x 3/4″ Part Number VC33T5075 |
| Recommended Accessories | AMD-1 Air Maintenance Device |
| Tank Volume (gallons) | 30 |
LTV1400-A
SKU: LTV1400-A

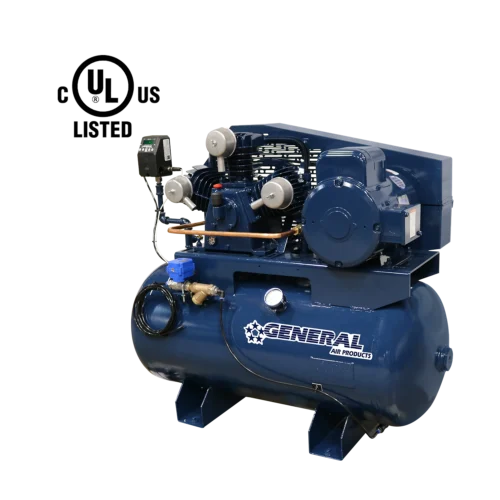

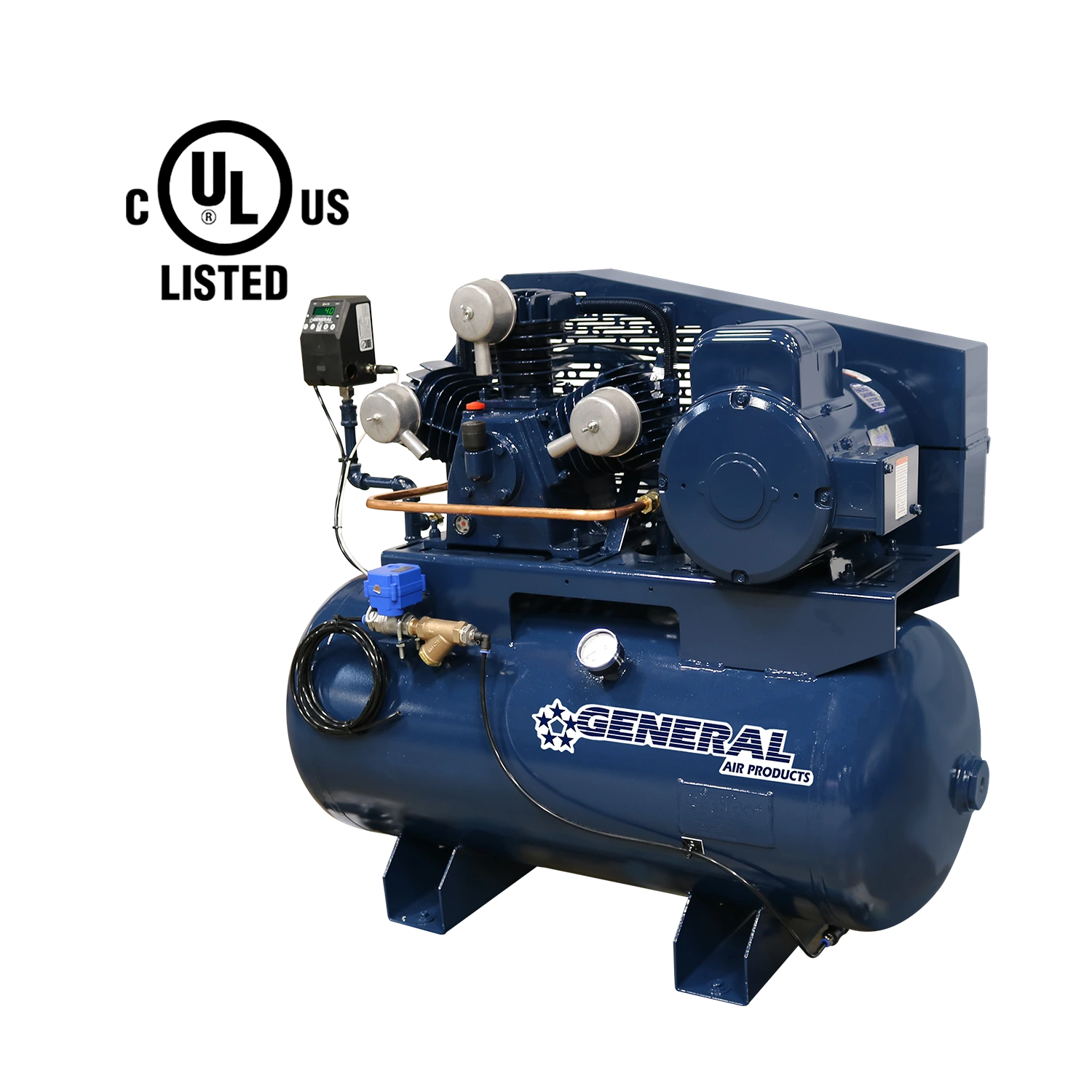

Oil Lubricated Tank Mounted Air Compressors With Digital Pressure Switch & Auto Tank Drain. For Use In Dry Pipe & Pre-Action Fire Sprinkler Systems.
UL 1450, Supplement SC listed.
Lead Time: 2 weeks to ship
For large orders & exact lead times, please consult factory.
Find this unit in stock with one of our Distributors near you:
The LTV1400-A has a capacity of 1400 gallons at 40 PSI. It outputs an average CFM at 10 PSI of 16.97 produced by a 3 horsepower motor. It takes single phase power and is available in 208v (A2S) and 230v (A3S) voltages.This unit comes with a digital pressure switch factory pre-set at 80/100 PSI. All tank mounted compressors require an Air Maintenance Device (AMD-1) to regulate system pressure, per NFPA Standard. General Air Products recommends the purchase of AMD-1 Air Maintenance Device with this unit.
This compressor is UL 1450, Supplement SC listed, featuring an all-new, UL 508 Listed, General Air Products Digital Pressure Switch and an Automatic Tank Drain Valve. The ONLY UL-Listed Digital Pressure Switch in the Fire Protection industry designed and built by the compressor manufacturer themselves. Displays Pressure Readings, Run Hours, Amps, Cycles and is extremely easy to adjust pressure settings in the field. Request a quote today!
