| SKU | OL615100AC |
| System Capacity (gallons) | 615 |
| Average CFM | 7.46 |
| Motor HP | 1 |
| Min. Wire Size | 6 |
| Phase | Single |
| Available Voltages | 115v, 208-230v |
| Width (inches) | 15 |
| In-head Safety Valve | 3/8″ 75 psi Safety Relief Valve – Part Number VS3T33075 |
| Recommended Accessories | AMD-1 Air Maintenance Device Motor Line Starter |
| Current Pressure Switch Model | SWP60601U |

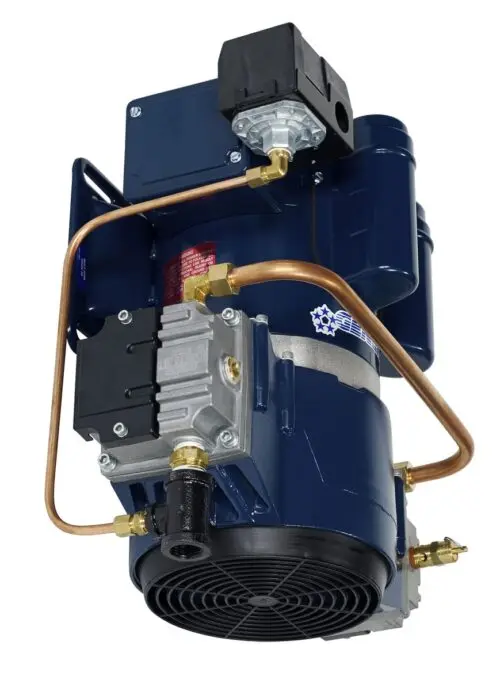

OL615100AC – Oil-Less Riser Mount Compressor
SKU: OL615100AC
OL Plus Series Oil Less Riser Mounted Air Compressor – Standard (Single Phase, 40 PSI)
General Air’s oil less riser mounted air compressors are fully automatic, virtually maintenance free and are designed to be easily installed on the riser, wall or floor. Request a quote today!
| General Arrangement | SPEC File | Wiring Guide | Press. Sw. Adjustment Video | Cut Sheet |
 |
 |
|
 |
|
