VAPOR-PHASE CORROSION INHIBITOR (VpCI®) DELIVERY SYSTEM
For Dry Pipe & Pre-Action Fire Sprinkler Systems

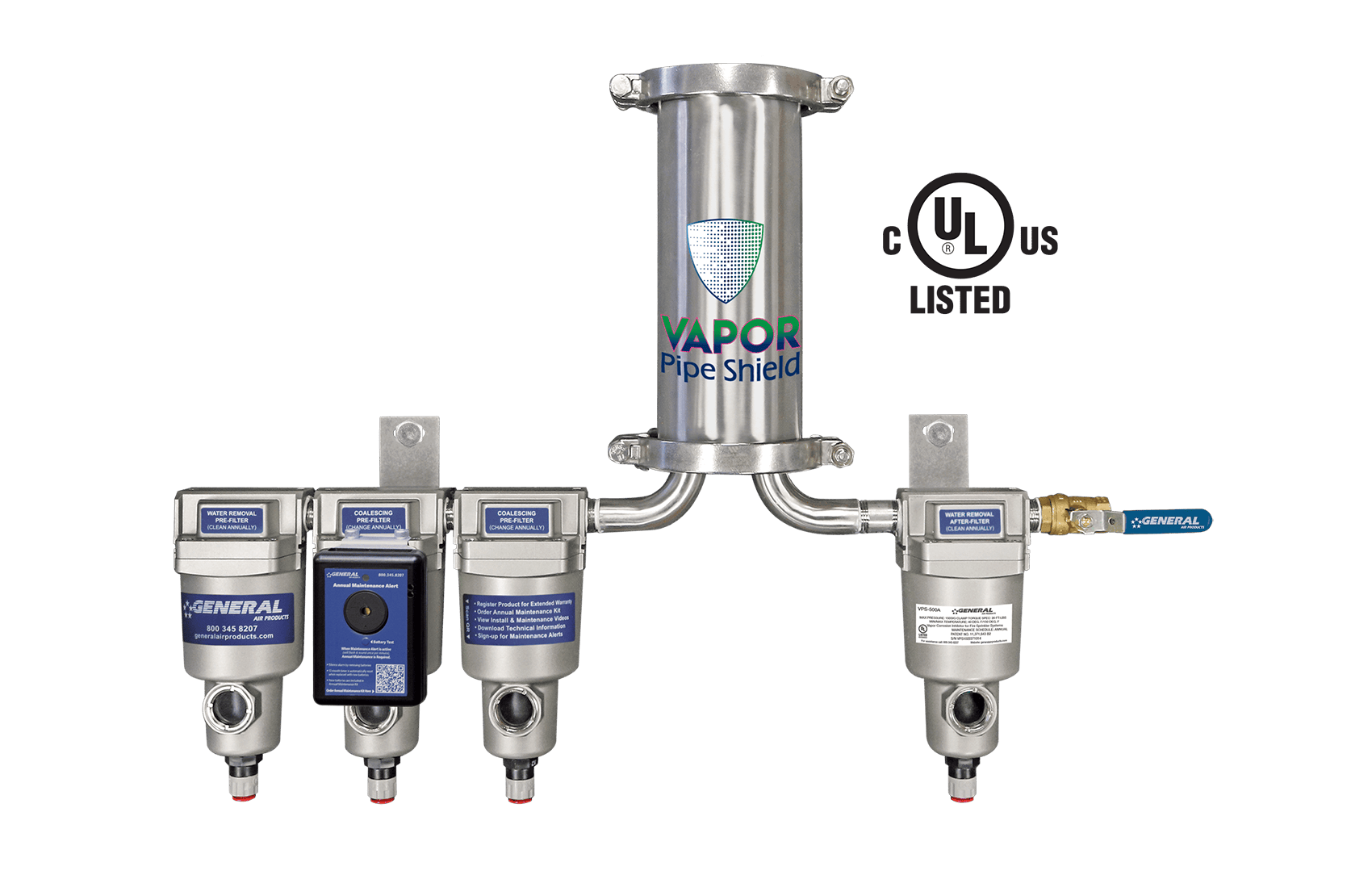

Vapor Pipe Shield is a UL Listed delivery system for Vapor phase Corrosion Inhibitor (VpCI®) that is fully mechanical, and piped directly in-line between the air compressor and the sprinkler valve. Air Flow provided by the air compressor runs through Vapor Pipe Shield and picks up VpCI® molecules that are carried into the sprinkler system and attracted to all metal surfaces. These Molecules attach to the metal pipe forming a ONE MOLECULE LAYER or shield that acts as a barrier between the metal surface and the corrosive environment inside the pipe. The Vapor moves quickly & efficiently throughout the entire system and even penetrates standing water completely protecting all metal surfaces. Vapor phase Corrosion Inhibitors have been used and proven for decades as the most effective means of corrosion mitigation for a wide variety of industries.

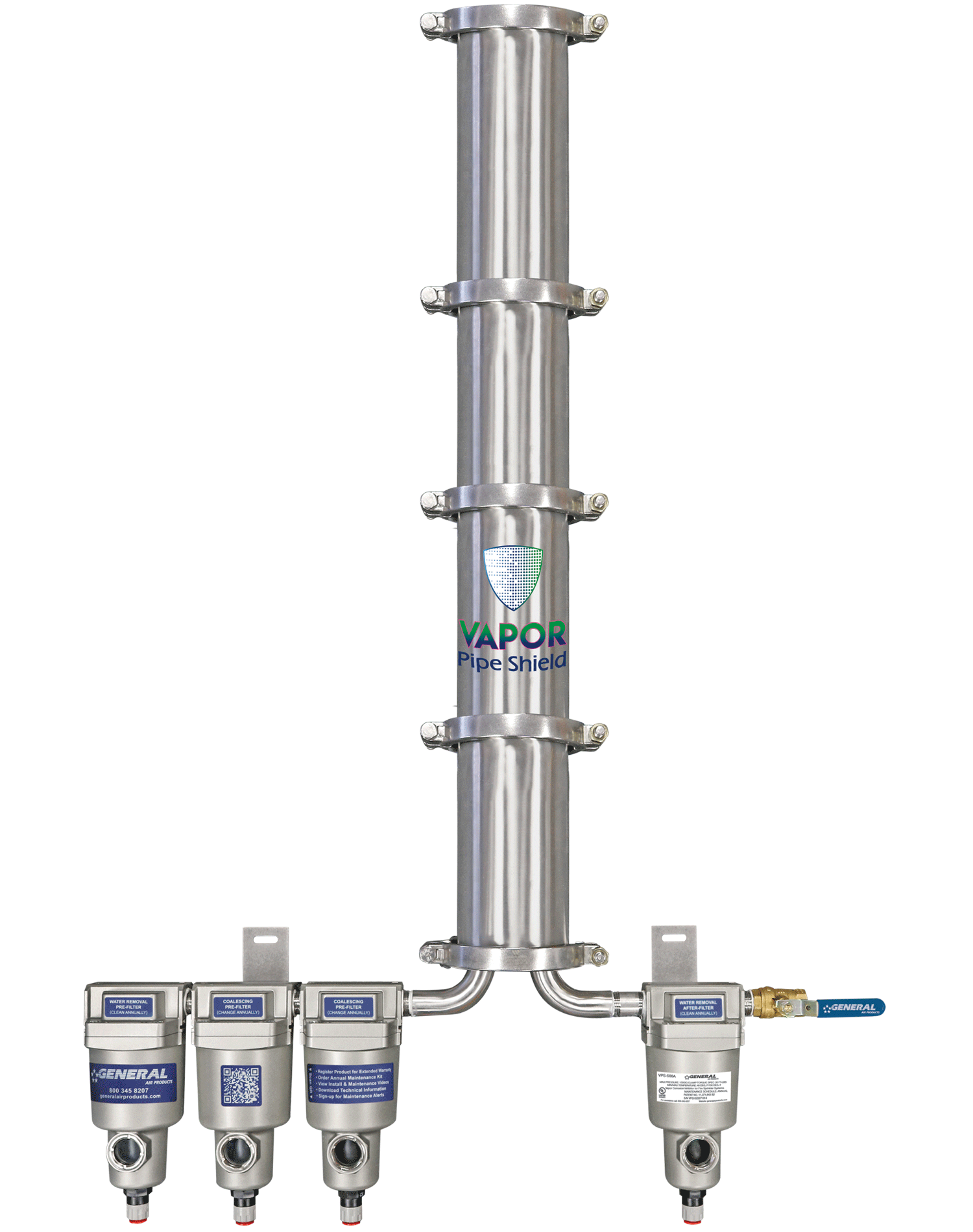

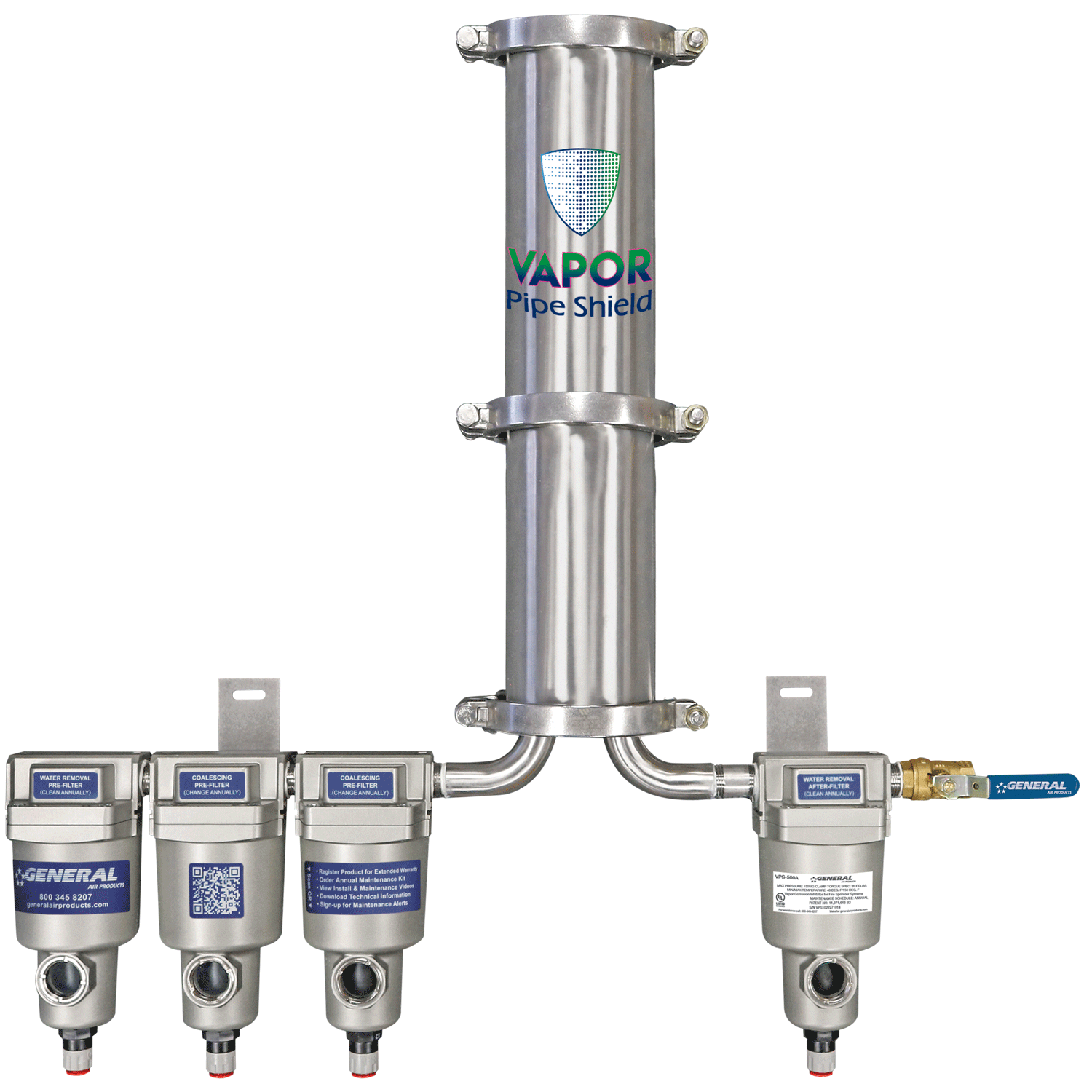

Model Number | Fill Capacity (Largest Riser) | Total Capacity (Max 4 Systems) | General Arrangement | Engineering Submittal Package | Order Maintenance Kits | Cut Sheet |
|---|---|---|---|---|---|---|
500 gal. | 2000 gal. |  |  |  | | |
1000 gal. | 4000 gal. | | | | | |
1500 gal. | 6000 gal. | | | | | |
2000 gal. | 8000 gal. | | | | |
Click on the model numbers to find additional product information.
Extending Your Warranty
Register your Vapor Pipe Shield Unit
By registering your Vapor Pipe Shield Unit your Manufacturer’s warranty extends from one year to three years. Plus you’ll receive Annual Maintenance Reminders when your Vapor Pipe Shield is soon due for maintenance, along with a link to easily order the proper Maintenance Kit for your Vapor Pipe Shield Model.

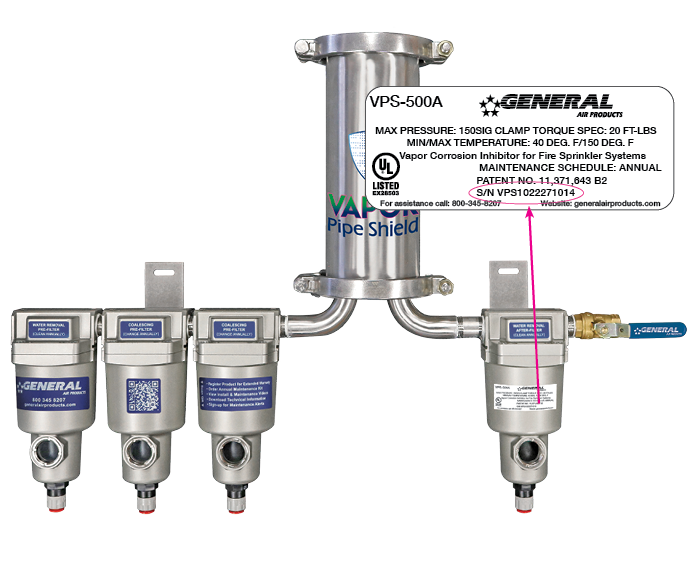

Simply located the Vapor Pipe Shield Serial Number as seen on displayed model, fill out the Registration Form and you’re all set.

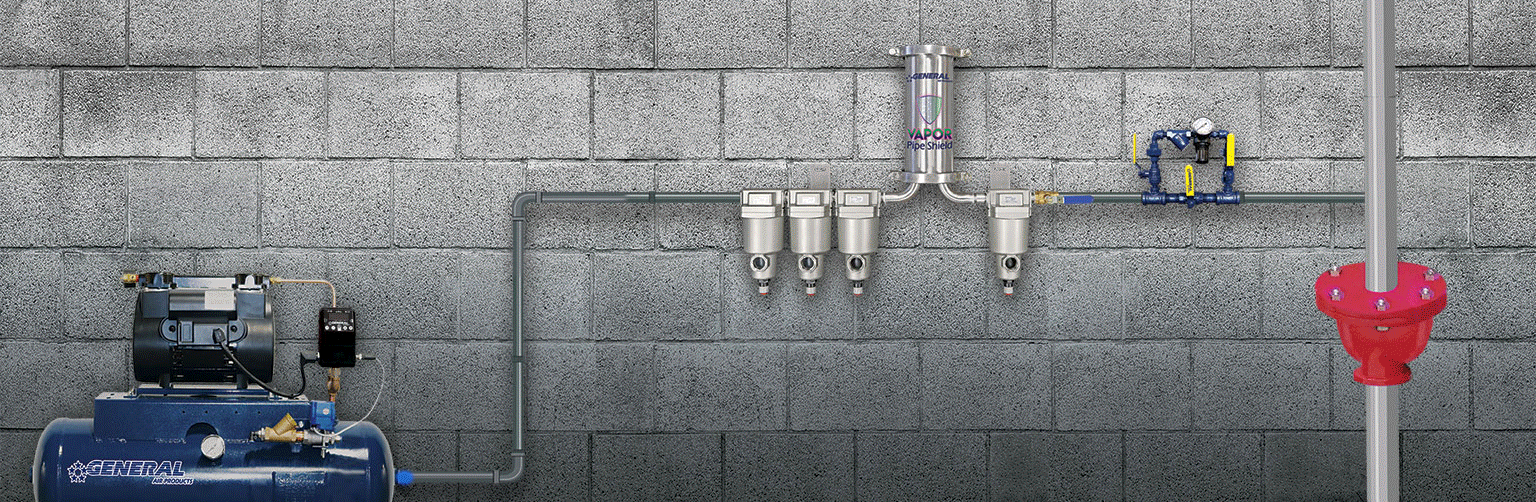

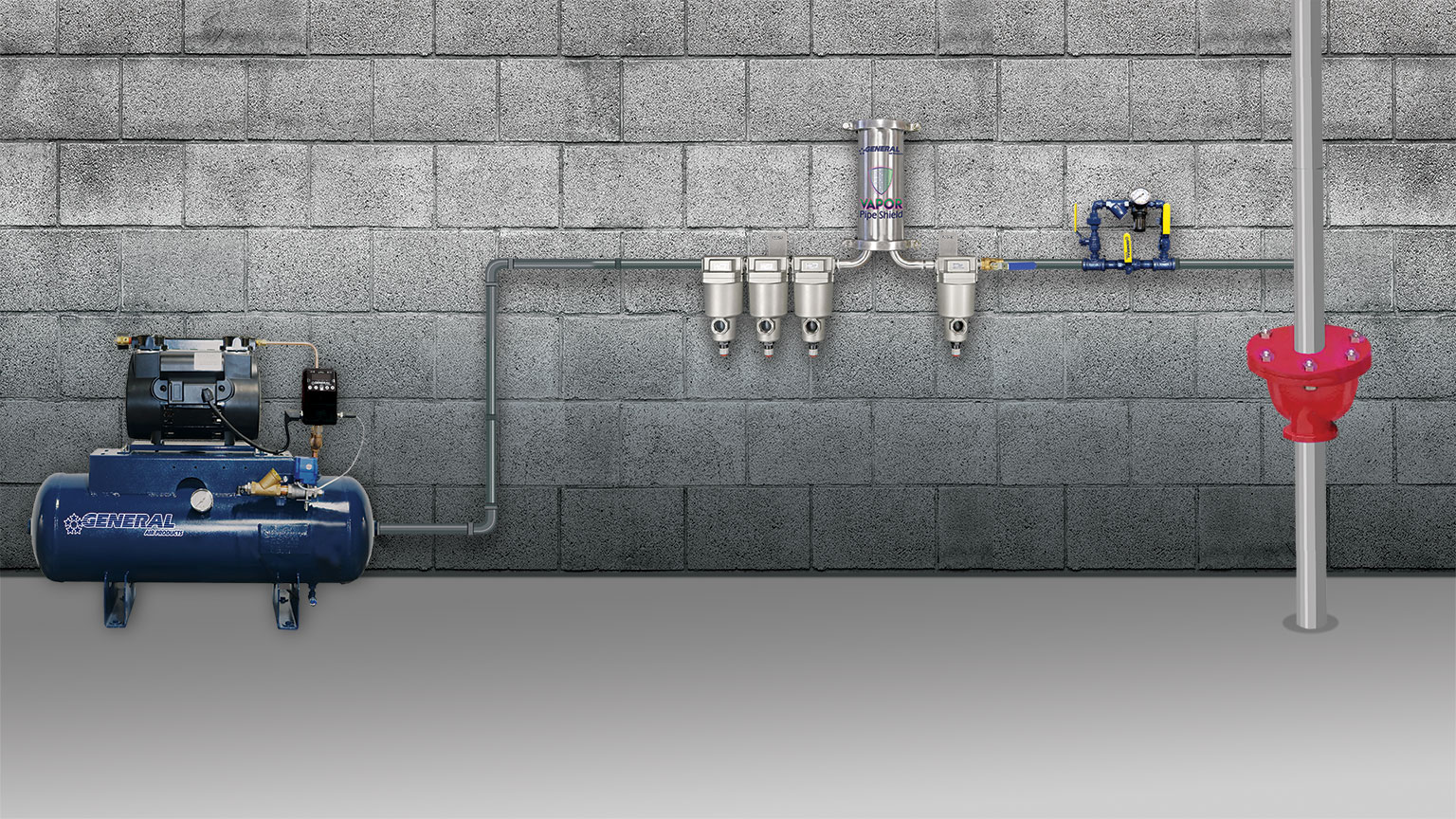

Tank Mounted System Layout
Quisque dapibus eros id scelerisque ultrices. Phasellus dignissim nunc et justo commodo, vitae rhoncus elit ornare. Suspendisse faucibus condimentum nisi blandit dapibus. Vivamus cursus a sem a laoreet. Nullam molestie molestie lorem, id rutrum erat consectetur sed. Nullam mollis lectus nec maximus hendrerit.
Riser Mount System Layout
Quisque dapibus eros id scelerisque ultrices. Phasellus dignissim nunc et justo commodo, vitae rhoncus elit ornare. Suspendisse faucibus condimentum nisi blandit dapibus. Vivamus cursus a sem a laoreet. Nullam molestie molestie lorem, id rutrum erat consectetur sed. Nullam mollis lectus nec maximus hendrerit.
Your Most Powerful Shield Against Corrosion
Changing the way corrosion is prevented in dry-pipe and pre-action fire sprinkler systems. Vapor Pipe Shield is a patented, UL Listed, fully mechanical system that creates a continuous molecular barrier inside the piping network.
