LT Plus Series Air Compressors

Home > Fire Protection Products > Fire Protection Air Compressors > LT Plus Series Air Compressors

LT620100A-HP-0

Oil Lubricated Tank Mounted Air Compressors For Dry Pipe & Pre-Action Fire Sprinkler Systems

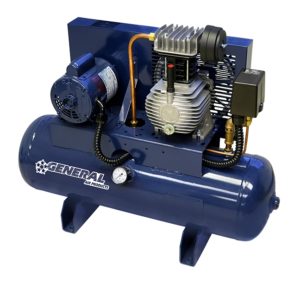

General Air Products LT Plus Series tank mounted lubricated air compressors are integrally mounted on ASME coded air receivers. They arrive ready for installation with specially formulated compressor oil, vibration pads, a 30″ stainless steel flex hose and union. Single phase, three phase, high pressure and 50 Hz units are available.

As with all of our fire protection air compressors, the LT Plus Series is specifically engineered to pressurize dry pipe and pre-action sprinkler systems according to the parameters of NFPA 13. Tank mounted air compressors are recommended as the ideal type of compressor for dry pipe sprinkler applications.

Range: The LT Plus Series lubricated, tank mounted fire protection air compressors can be used in dry sprinkler systems up to 2500 gallons in size.

Note: An AMD-1 air maintenance device is required by code with all tank mounted fire protection air compressors. Multiple dry valves may be supplied from a single tank mounted compressor when using our AMD-1 on each individual system.

Model Number
System Capacity
General Arrangement
Engineering Submittal Package
Wiring Guide
Cut Sheet
200 gallons
PDF
ZIP
PDF
PDF
290 gallons
PDF
ZIP
PDF
PDF
365 gallons
PDF
ZIP
PDF
PDF
425 gallons
PDF
ZIP
PDF
PDF
660 gallons
PDF
ZIP
PDF
PDF
900 gallons
PDF
ZIP
PDF
PDF
1050 gallons
PDF
ZIP
PDF
PDF
1300 gallons
PDF
ZIP
PDF
PDF
1400 gallons
PDF
ZIP
PDF
PDF
2000 gallons
